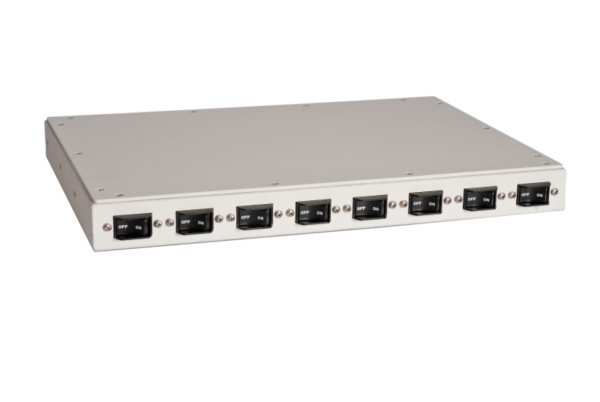

PDU APG2500RPDU

1U Power Distribution Unit, 8 channels

COMPLETE Rugged UPS SOLUTION INCLUDES POWER MANAGEMENT ACCESSORY

Rugged-UPS™ Has Met Its Power Distributor
Acumentrics’ Rugged PDU provides easy access to conditioned power for up to 8 outputs. This complete, rugged solution eases power distribution, simplifies cabling and has been designed specifically to meet the demanding needs of military applications.

Rugged Parallel Power
The Rugged PDU can be configured with multiple AC inputs from paralleled Rugged UPS units to increase output power.

One PDU – Eight Output Connectors
The unit offers maximum cable management, providing conditioned power for up to 8 outputs.

Robust
Unlike other power distribution strips, the Rugged PDU features circular connectors sealed with positive latching that protect against
blown precipitation, wind, dust, sand, humidity, vibration, shock other environmental conditions.

EMI
Protects sensitive electronics from the effects of electro-magnetic interference when integrated with Acumentrics’ UPS systems.

Over Current is Under Control
Each output connector has a circuit breaker for over current protection, as well as manual control of each channel.

The Perfect Fit for Military Apps
This 1U-high, 12” deep and 10 lb unit is designed to fit standard military 19” racks. It also features MIL-STD connectors and components.

Is this product available for Quickship?
No
This product is designed for these industries:
Rugged Industrial
Reference
APG2500RPDU
Model
PDU APG2500RPDU
Power
Volt-ampere2500
Watts2000
Input
In (VAC)80-265
In (freq)47-440
In (VDC)
Output
Out (VAC)115, 230 Optional
Out (VDC)
Size
Units1u
H,W,L (inches)1.75″, 12″, 17″
This product meets these MIL Standards:
Blown Precipitation – MIL-STD-810G
EMI/RFI – MIL-STD-461F
Shipboard – MIL-STD-1399
Shock – MIL-STD-810F
Vehicle Power – MIL-STD-1275
Vibration – MIL-STD-167-1
